Product Description

Product Description

Tracked self-propelled rural management machine is a kind of easy-to-use and widely-used Agricultural Machinery. The remote control is used to control the whole machine. 3 + 1 walking gearbox, 230mm international engineering rubber track, one machine with nine functions. Only one host is needed to realize the functions of rotary ploughing, furrowing, weeding, fertilizing, pesticide application, backfilling, ridge, Bulldozer and transportation platform by changing different attachments, greatly improving the use of the field management machine Rate, if farmers want to complete a variety of operations, they don not need to buy new machines, so their cost input has been reduced.


Crawler Cultivator Main Machine
Model
NM-C80
Engine
Yuchai diesel engine
Rubber track size
230*72*43cm
Power
23KW/32HP
Fuel consumption
5.5L/h
Remote control distance
≤200M

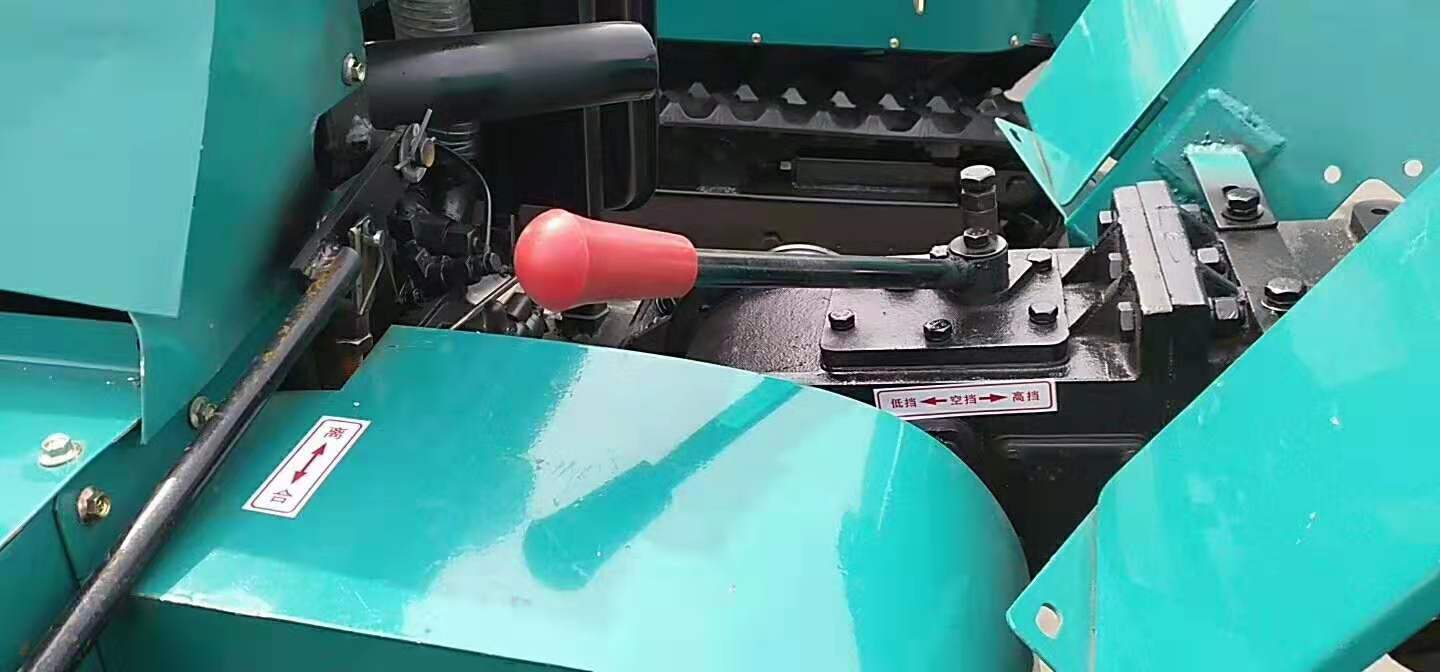

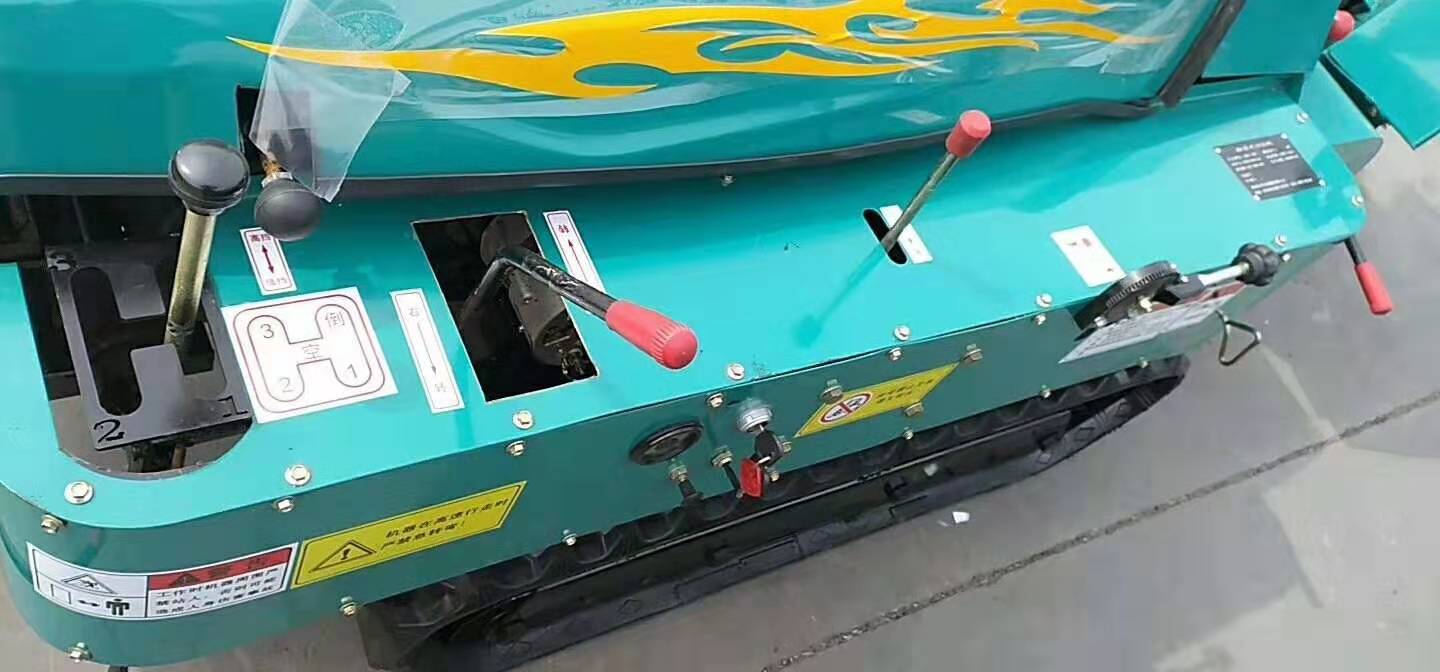

Gear
3 forward gear 1 reverse gear
Transport Size
290*110*100cm
Ground clearance
28cm
Climbing
30°
Weight
800KG
Diesel tank capacity
24L
Application

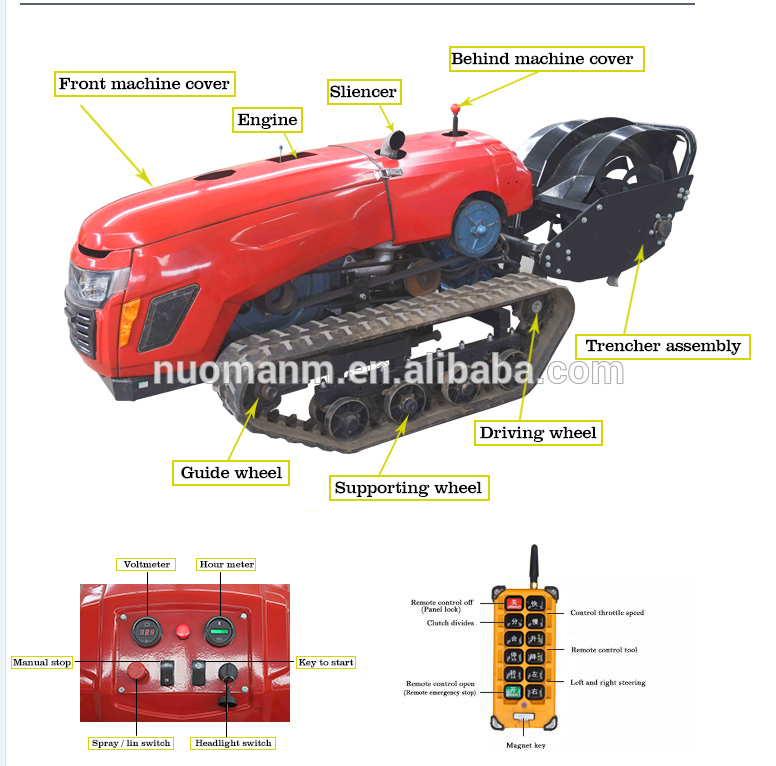

Datail

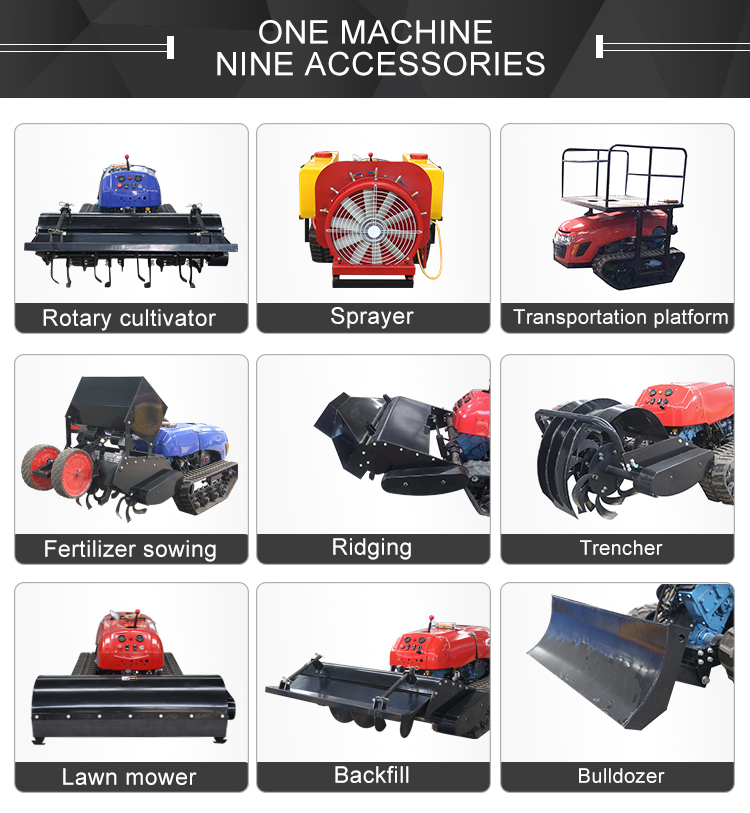

Optional Attachments
Attachment parameters

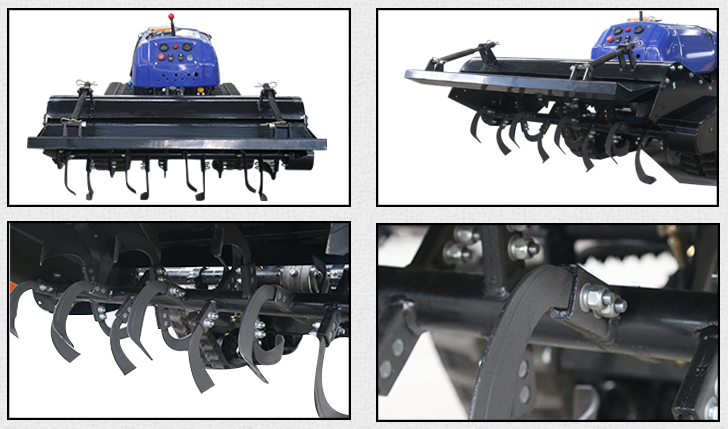

Quantity of blades
28
Type
Rotary knife type integral or split knife shaft
Rotary tillage depth
0-25cm
Rotary tillage width
1.2m
Rotating speed
330 r/min
Blade material
65 Model manganese steel

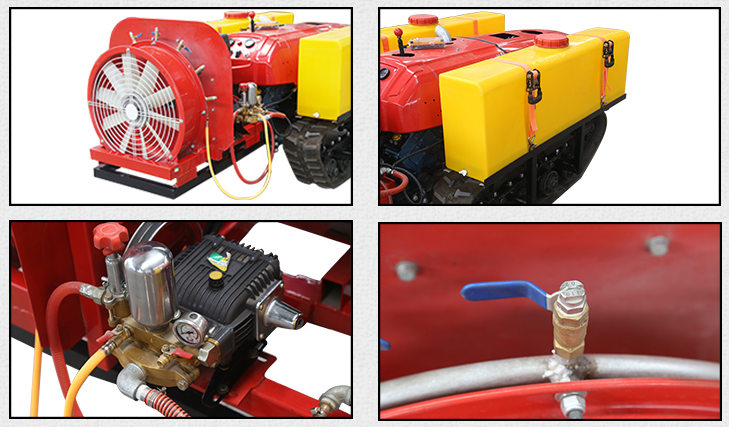

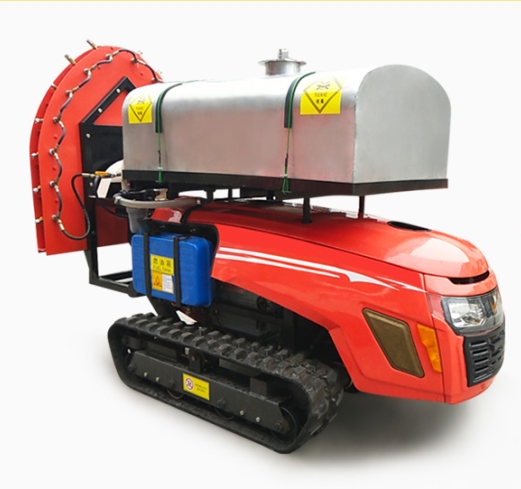

Modus
Air spray
Spray radius
15M
Medicine box capacity
600L( Two Medicine boxes)
Nozzle quantity
10

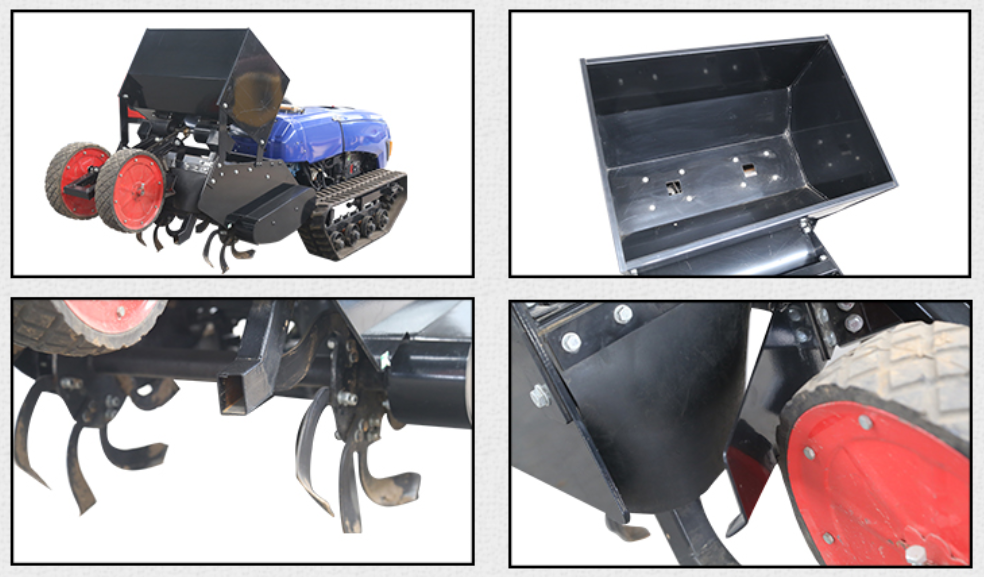

Fertilizer sowing
Fertilizer sowing depth
0cm-35cm
Box capacity
60L
Type
Integration of trenching, fertilization and backfilling

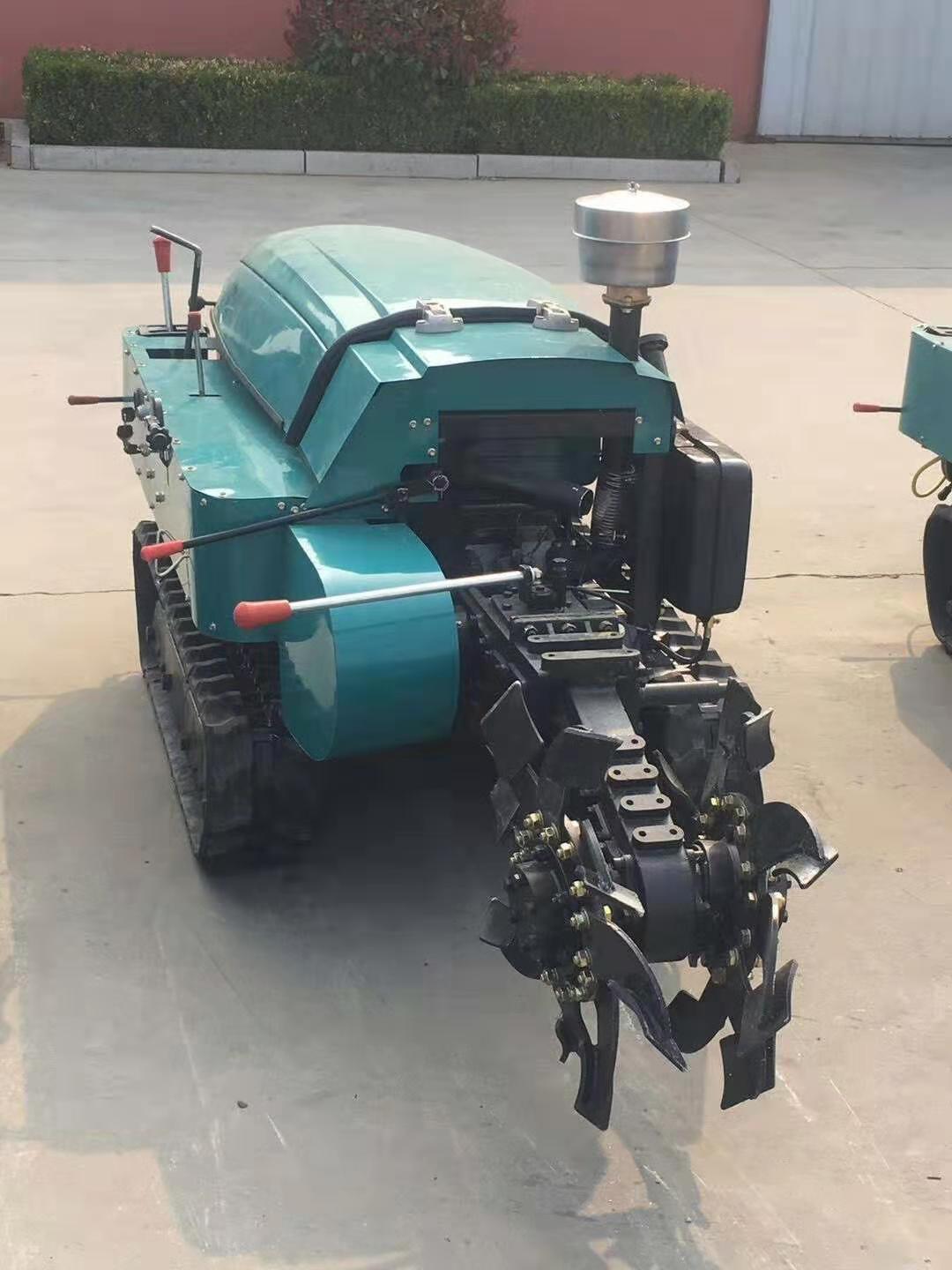

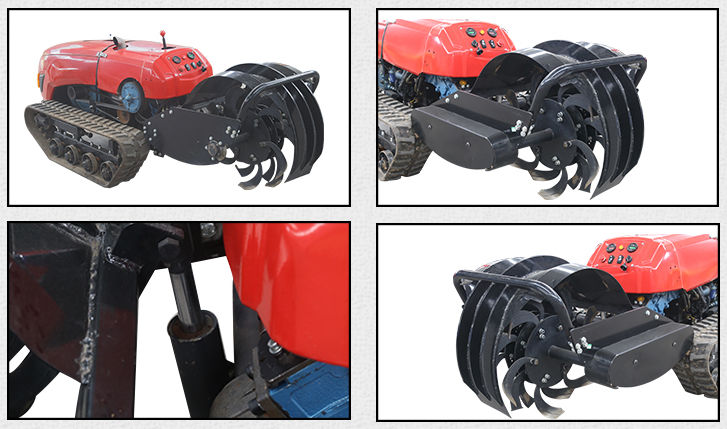

Trencher
Blade material
65 Model manganese steel
Type
Knife disc type
Work efficiency
800-1000 m/hour
Ridging depth
0cm-40cm
Ridging width
40cm

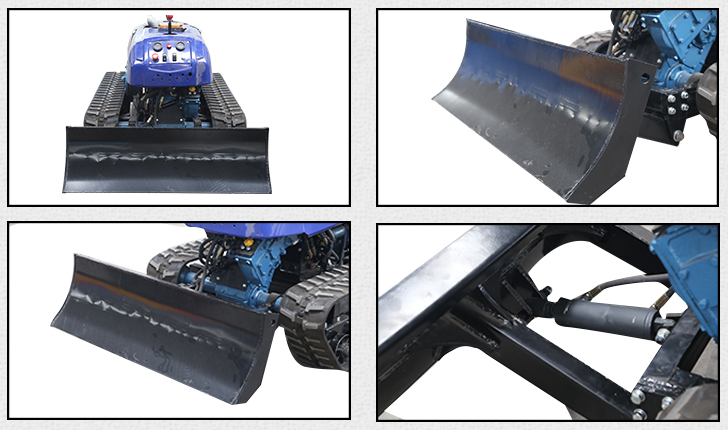

Bulldozer
Width
1.2m
Height
30cm

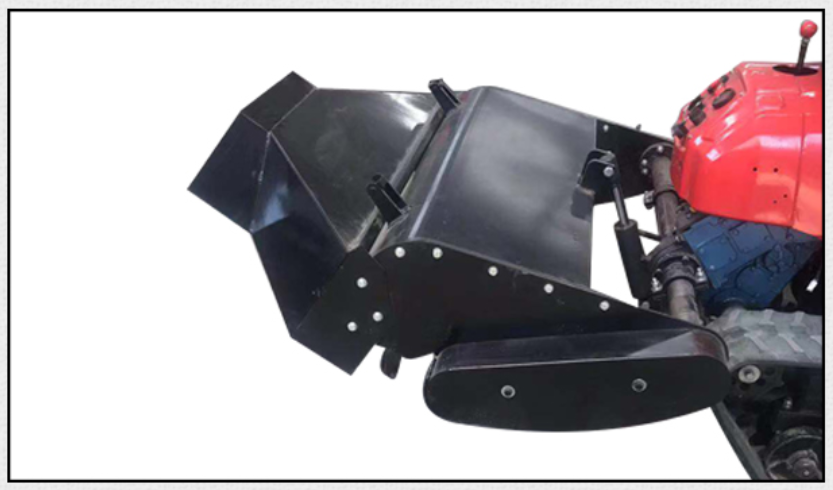

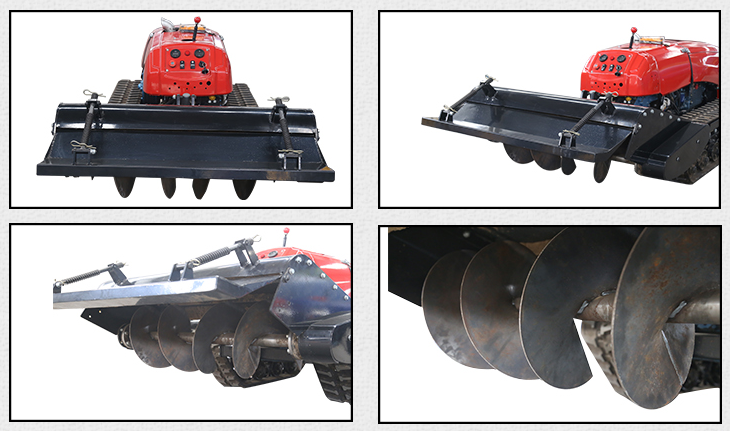

Backfill
Type
Spiral type
Working width
1m-1.2m(customizations)
Rotating speed
330 r/min

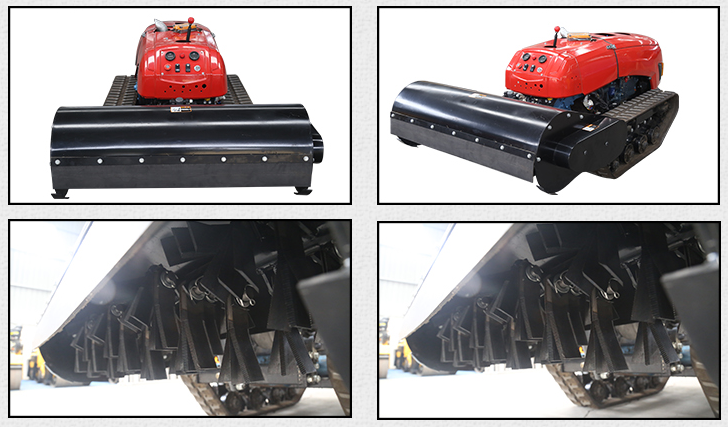

Lawn Mower
Type
Vertical knife
Mowing width
90cm
Stubble height
5cm-10cm
Knife disc rotating speed
820 r/min
Ridging
Ridge height
60cm
Down ridge width
90cm
Up ridge width
45cm

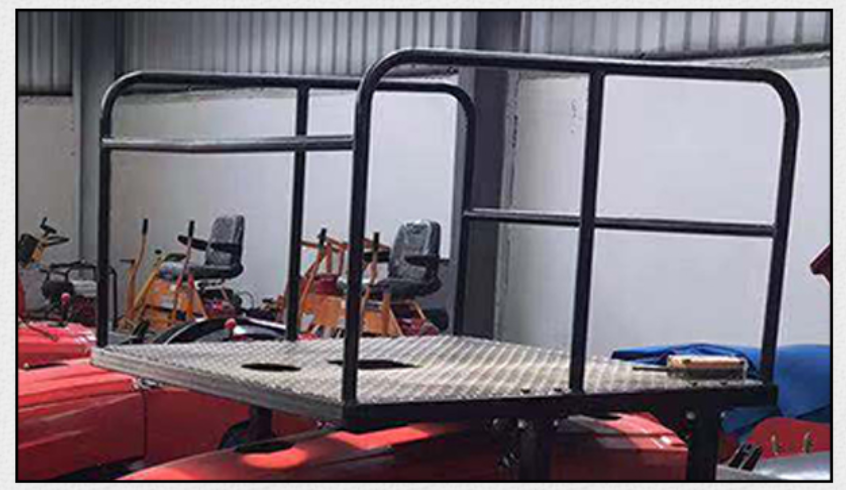

Transportation platform
Platform area
120cm*124cm
Ground clearance
180cm
Driving load
500kg

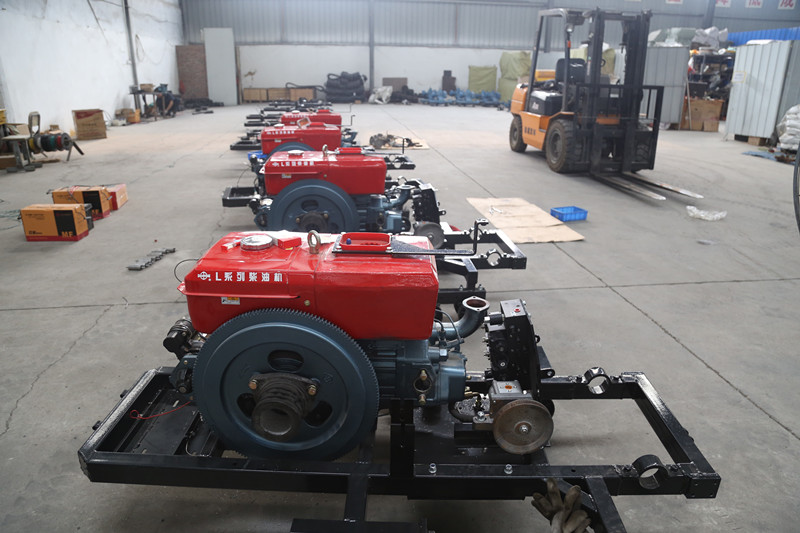

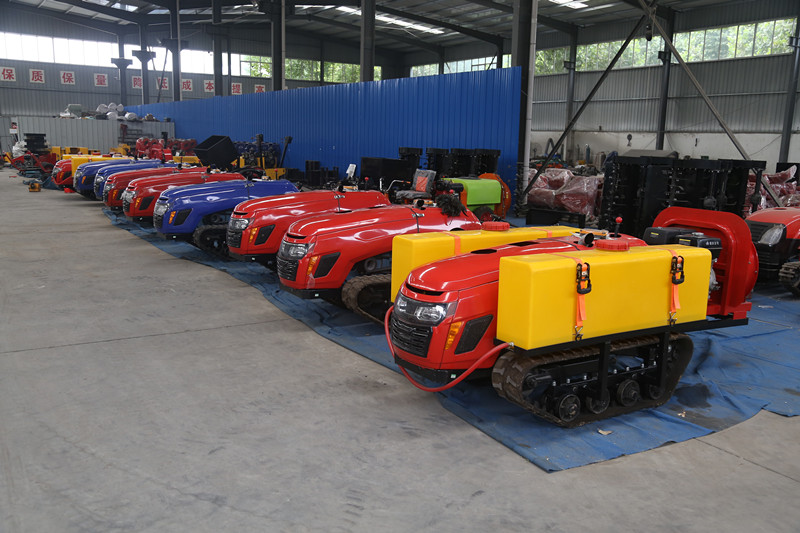

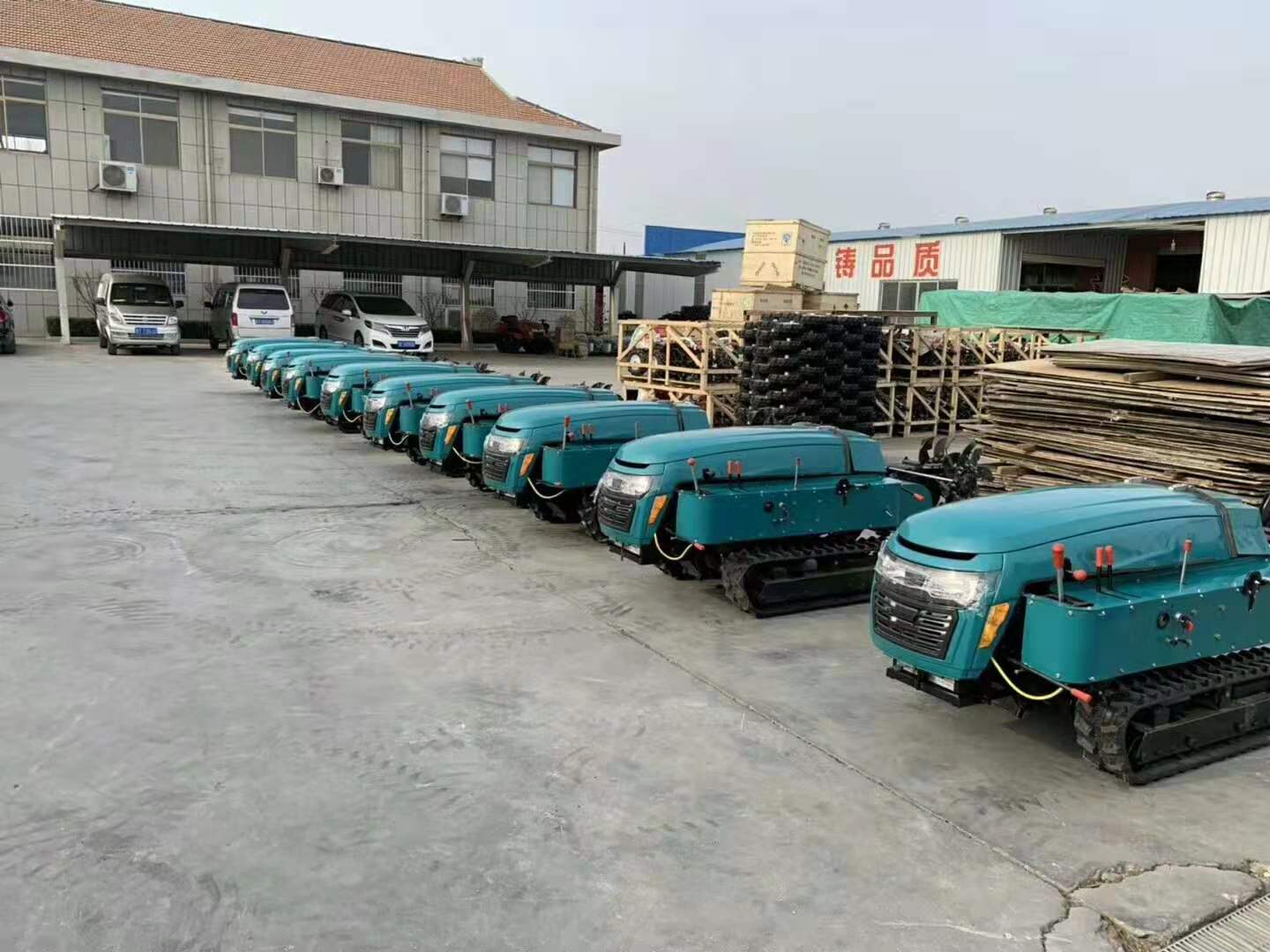

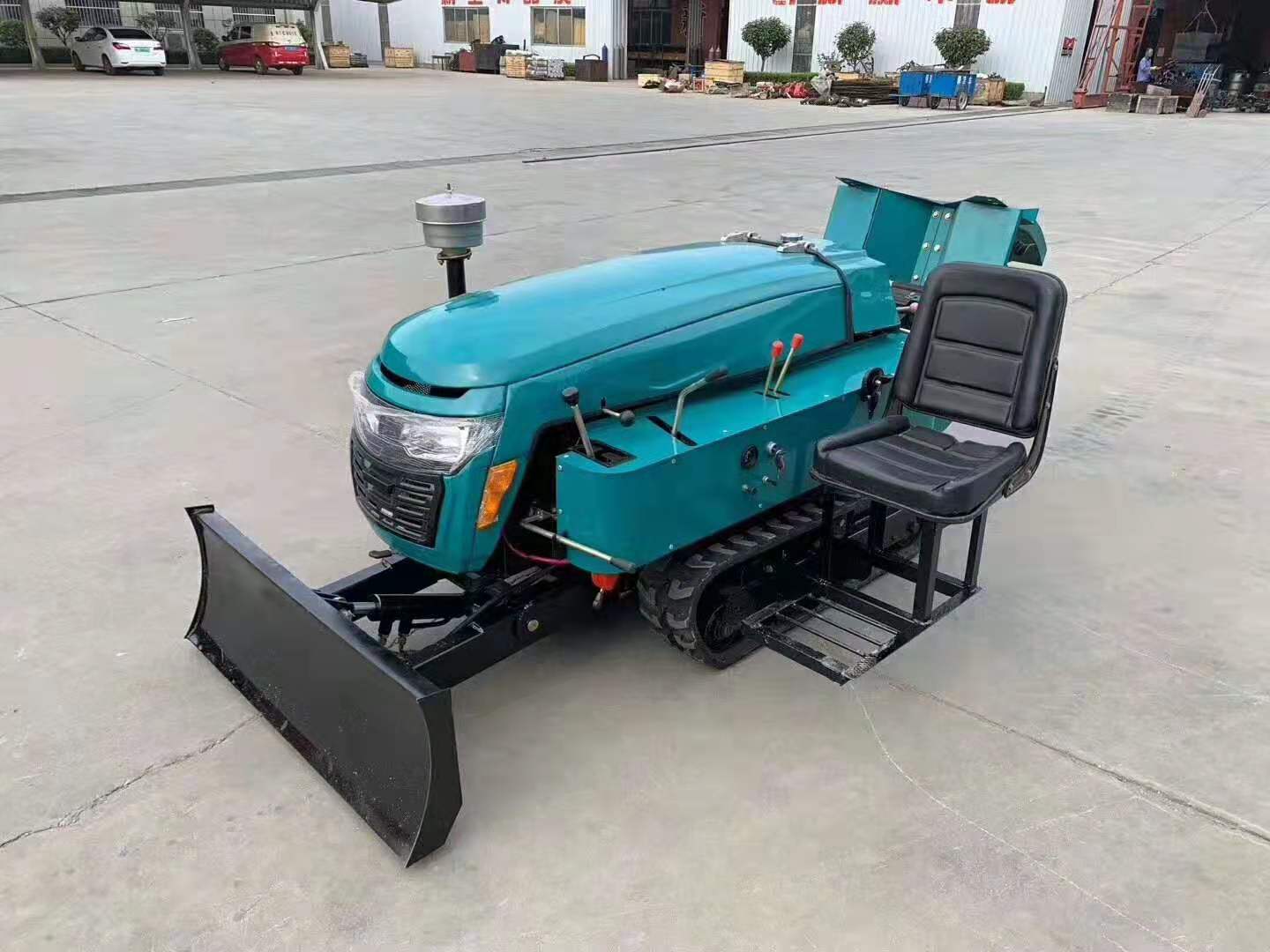

Stock Display
OTHER PRODUCT

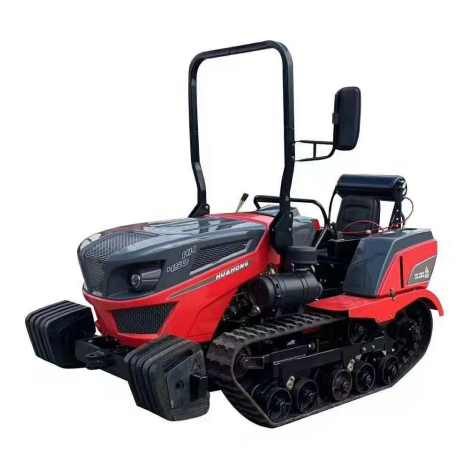

Name
Crawler Tractor
Model
NM-C90
Engine
Yuchai 490 Diesel 45HP
Cylinder
Four cylinder
Size
2.4*1.2*1.3m
Start
Electric Started
